SPECIFICATIONS

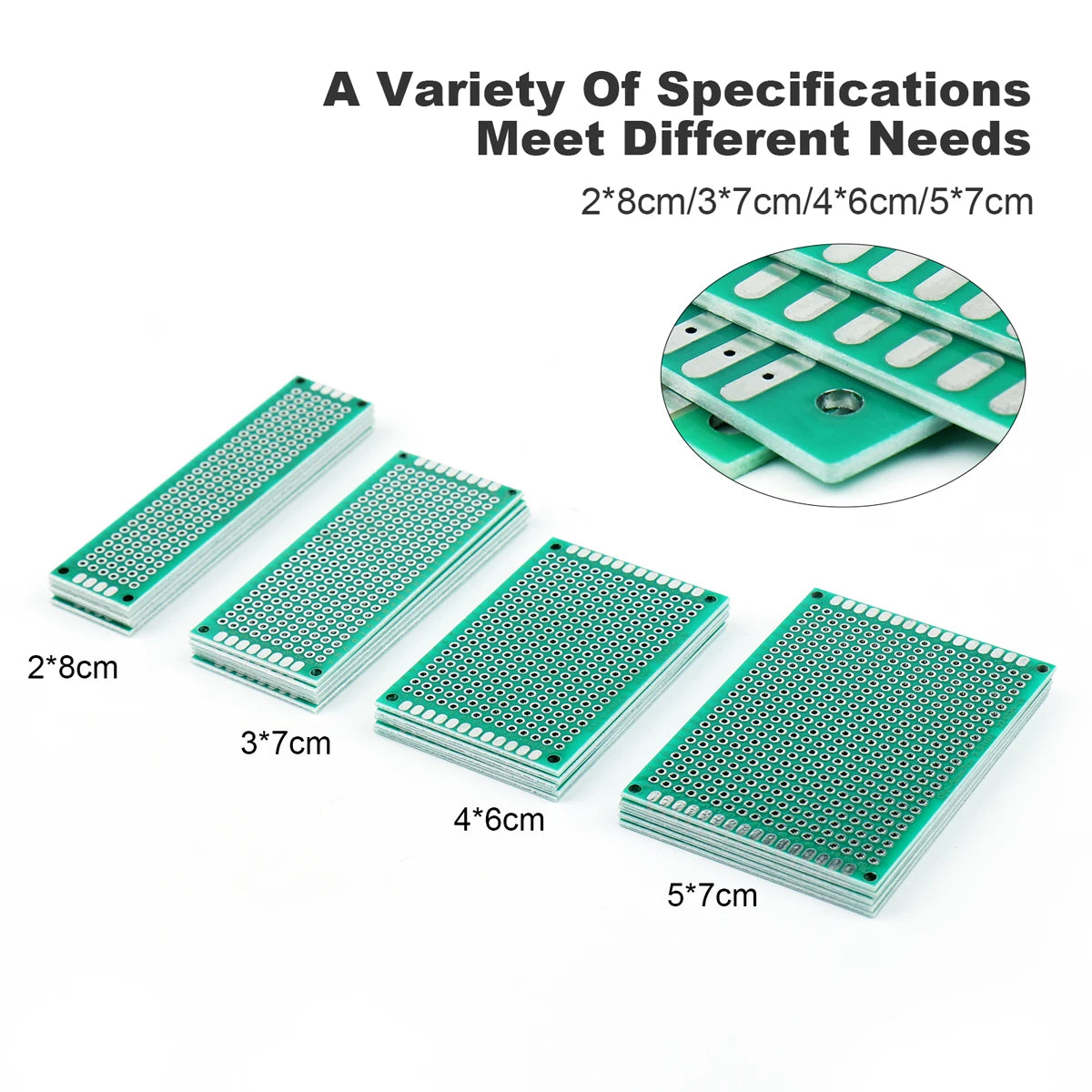

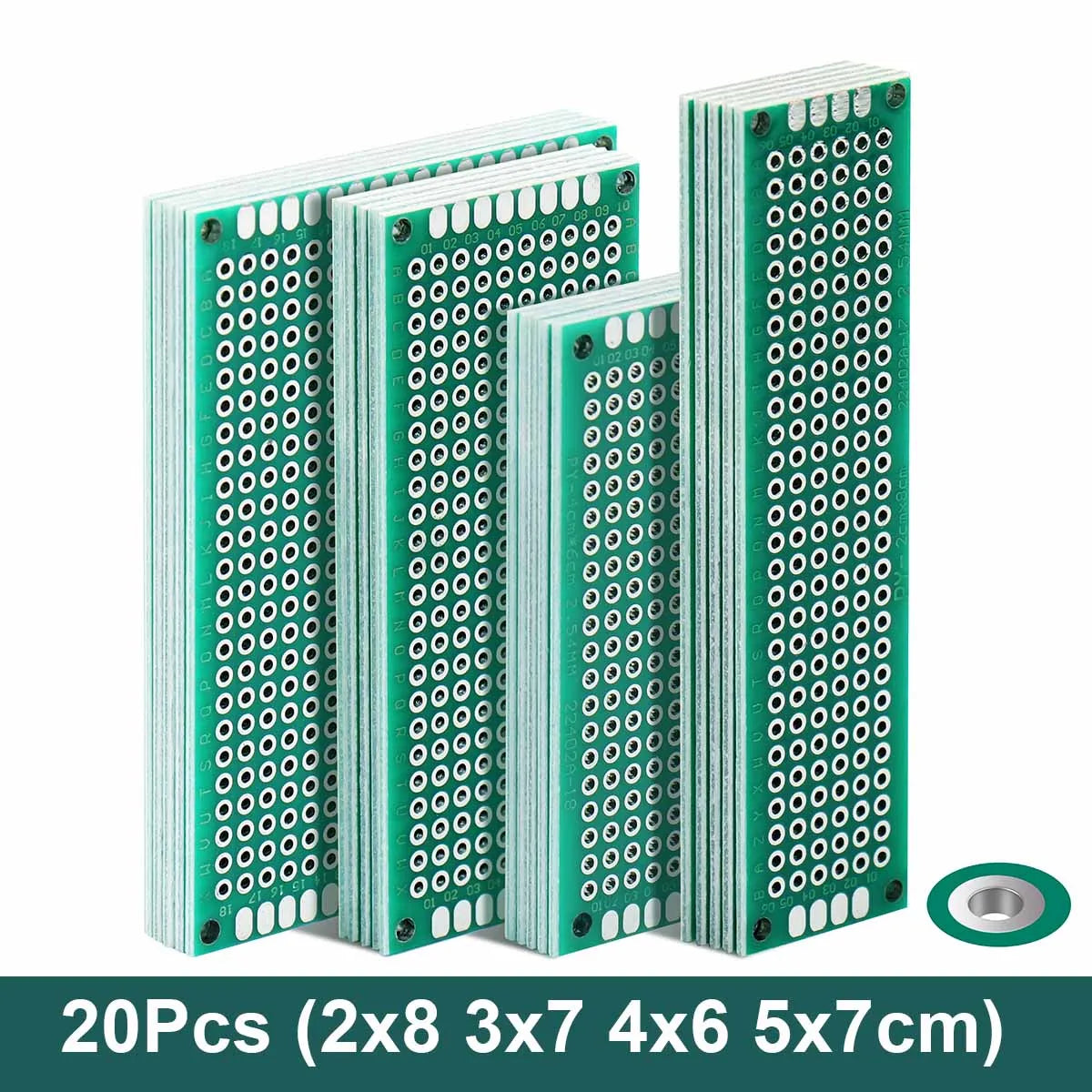

20pcs PCB Prototype Board Circuit Proto board Universal Strip board Prototyping Vero board 2X8 3X7 4X6 5X7 5Pcs Each Mixed Green

Total 20pcs, each size 5pcs

Grid : 0.1" (2.54mm)

Thickness : 1.6mm

Hole diameter : about 1mm

The diameter of 4 large positioning holes: 4mm

Material : FR-4 (glass fiber)

All holes are plated through

Both sides are identical

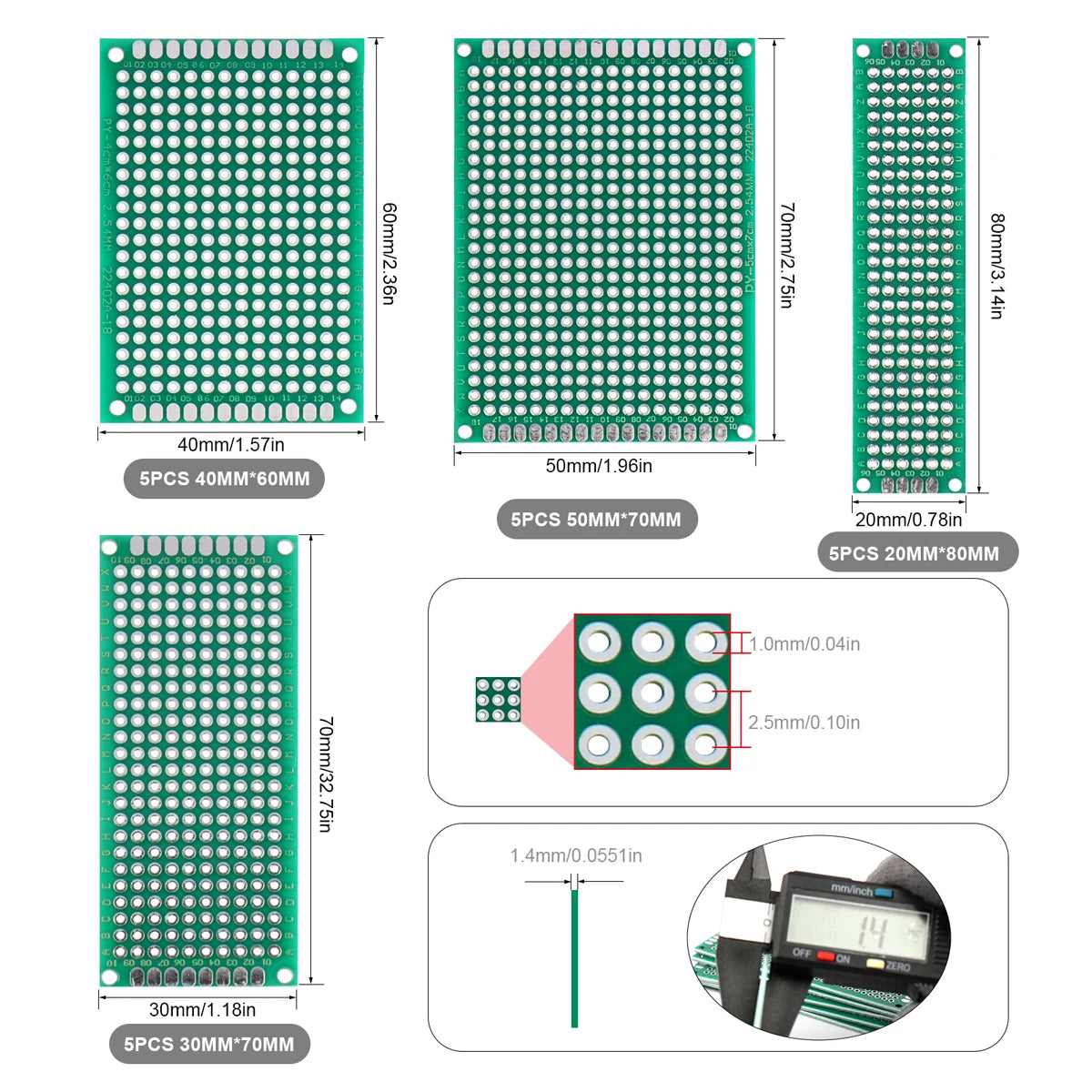

Dimension Hole(column x row) Quantity

50 x 70mm, 1.97" x 2.76" 24 x 18 5

40 x 60mm, 1.57" x 2.36" 20 x 14 5

30 x 70mm, 1.18 x 2.76" 24 x 10 5

20 x 80mm, 0.79" x 3.15" 28 x 6 5

Number of the PCB holes :

2X8CM :6X28=168(holes)

3X7CM : 10X24=240(holes)

4X6CM : 20X14=280(holes)

5X7CM : 18X24=432(holes)

Package included:

20pcs x FR-4 double side prototype PCB printed circuit board

Origin: Mainland China
