Bicicleta Electric Brushless DC Controller S6-21 25A 24V/36V/48V 250W/350W/500W Electric Scooter/Bicycle Accessories Mainland

Bicicleta Electric Brushless DC Controller S6-21 25A 24V/36V/48V 250W/350W/500W Electric Scooter/Bicycle Accessories Mainland

Regular price $41.99 USD
Regular price $0.00 USD Sale price $41.99 USD
Sale Sold out
Shipping calculated at checkout.
Motor Type

SPECIFICATIONS

Brand Name: other

Controller Model: Bicicleta Electric Brushless Controller

Maximum Current: 25A

Model Number: S6-21

Output Power: 250W,350W,500W

Place of Origin: Mainland China

Protection Class (ip): None

Rated voltage: 24V,36V,48V

Voltage: 24V 36V 48V BLDC Controller

Warranty: None

Features:

BLDC motor controller is suitable for electric bike, scooter,etc, suitable for 24V36V 48V 250-500W motor. The controller shell is made of aluminium alloy, which can protect the inner circuit and has good heat dissipation feature to avoid thermal overloading. Brushless controller can provide steady speed and sensitive control of braking and direction changes, bringing you a more comfortable riding experience. The wires and interfaces are durable, and ensure low malfunction of long time use.The cables have different colors for your easy installation.

Note:

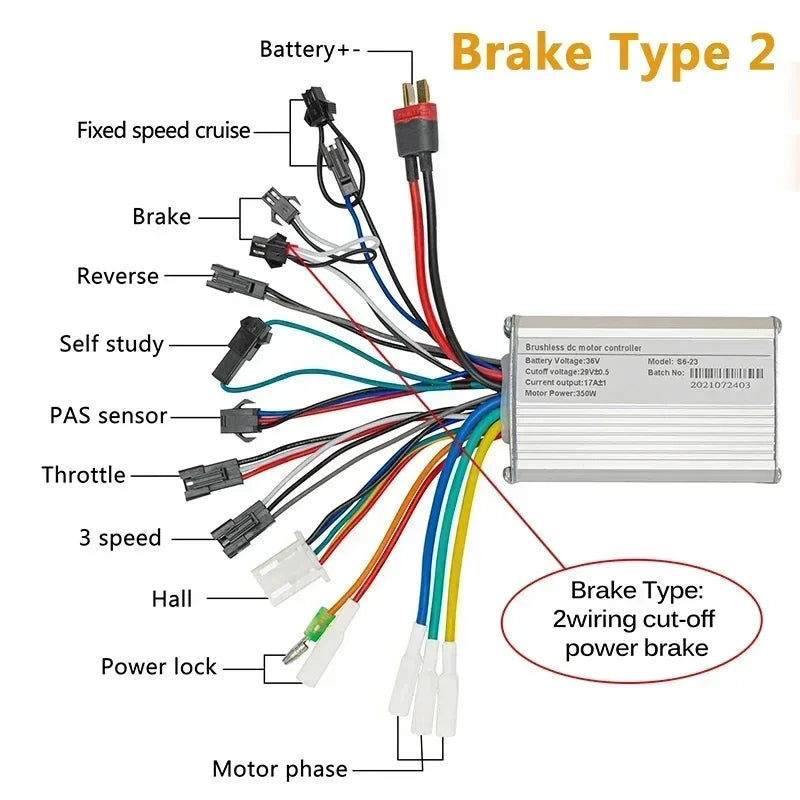

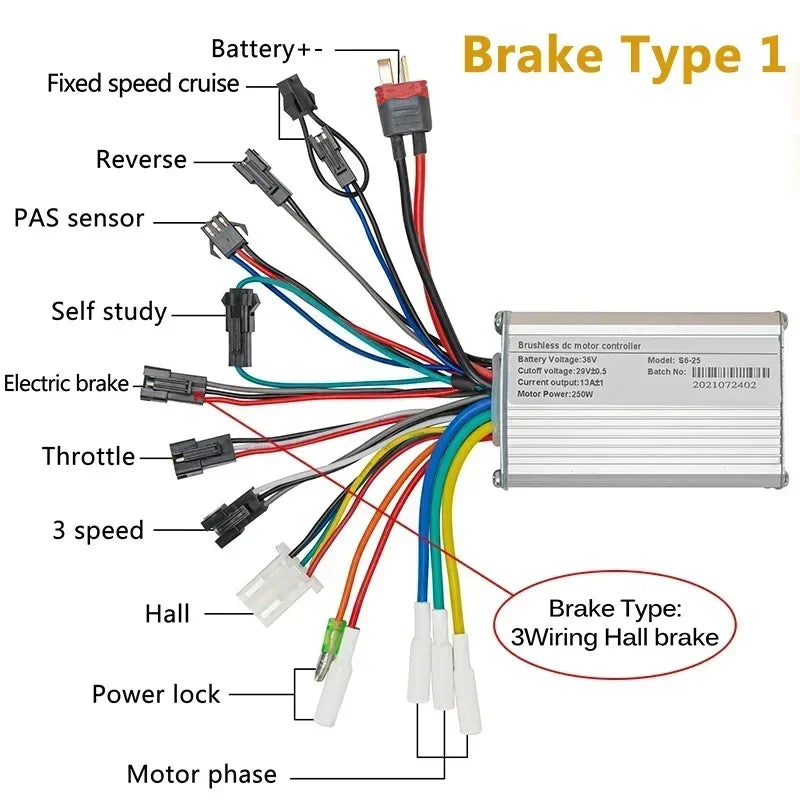

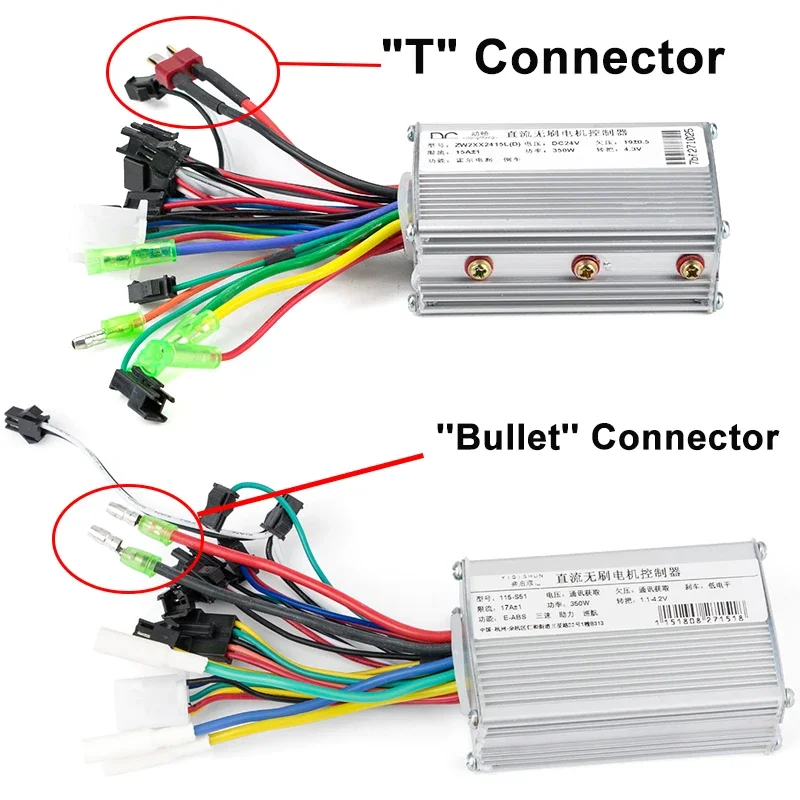

The Controller have two Types Brake Connect: Type 1 is Hall Brake, Type 2 is Cut-off Power Brake. Battery connector: "T" and "Bullet"connector are shipped randomly, you can indicate which one you want when you place the order This Controller Cannot Connect to Display. If you need connct to display, please leave message and we will send you a new link

Parameter:

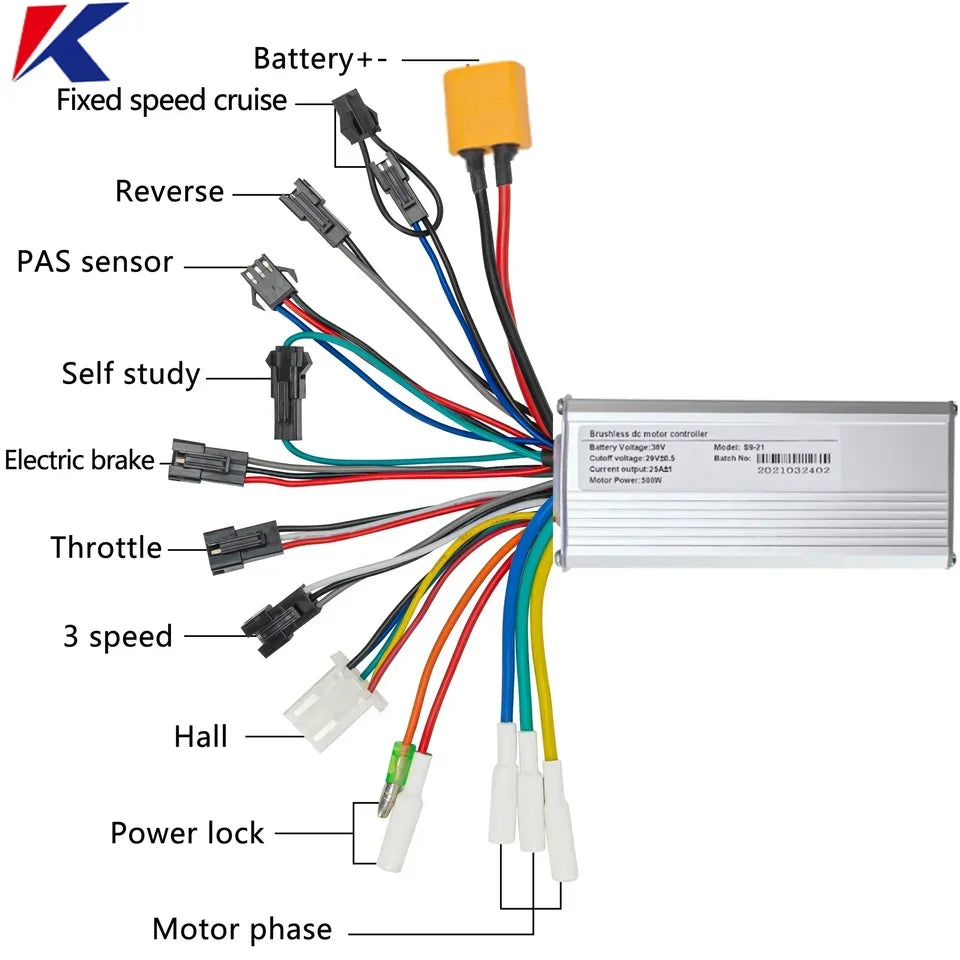

Type: BLDC Motor Controller Voltage: DC/24V/36V/48V Power:250W/350W/500W Low-Voltage Protection:19/29/39±0.5V Current Limite: 15±1A/17±1A/25±1A Throttle:4.3V Usage: For 24/36/48V 250-500W BLDC Motor EBike,Electric Bicycle Scooter,Folding Bike,Unicycle Scooter,Blance CAR ,DIY Motor Controller Function: Hall, Reverse( The Controller can Work without Hall.) Wiring diagram: Power cable, Motor phase, Electric door lock, Anti-theft, self-study, Hall brake,1: 1 boost, Cruise,Throttle

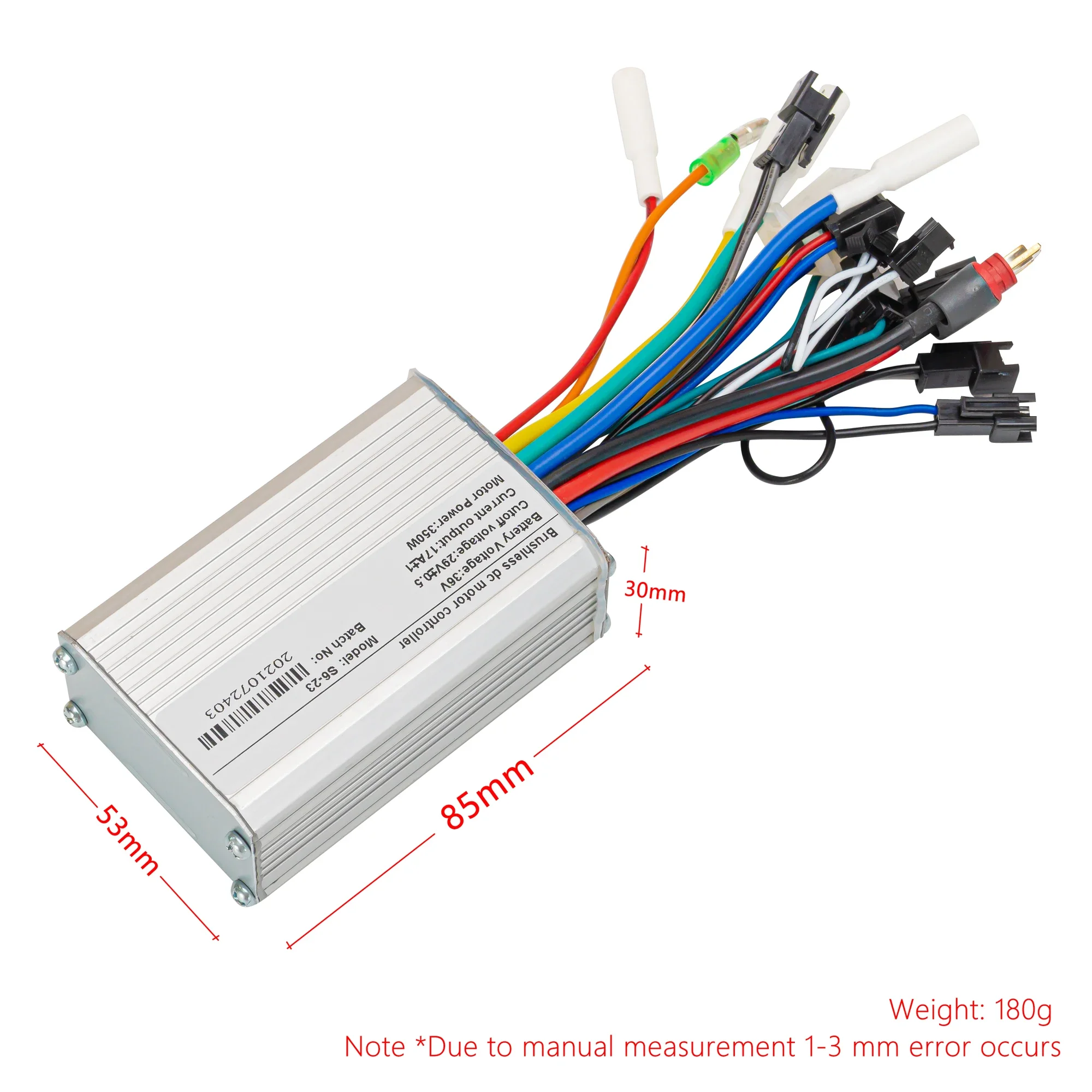

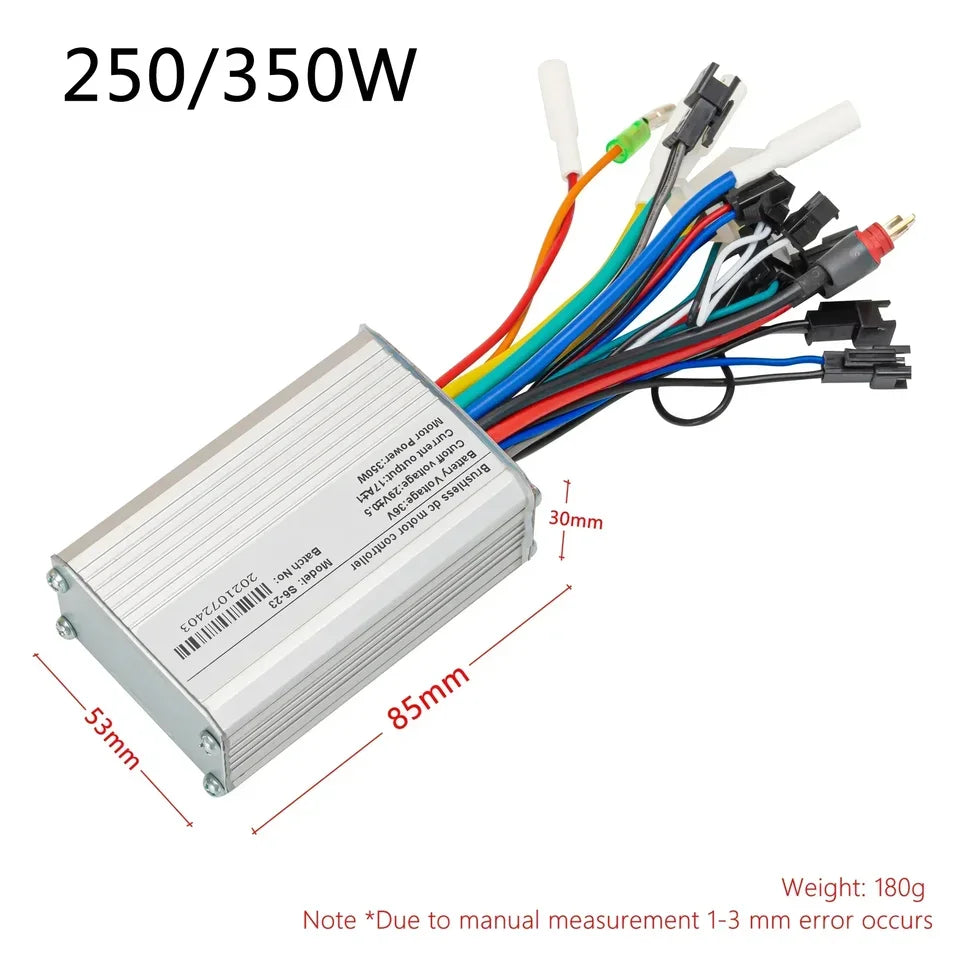

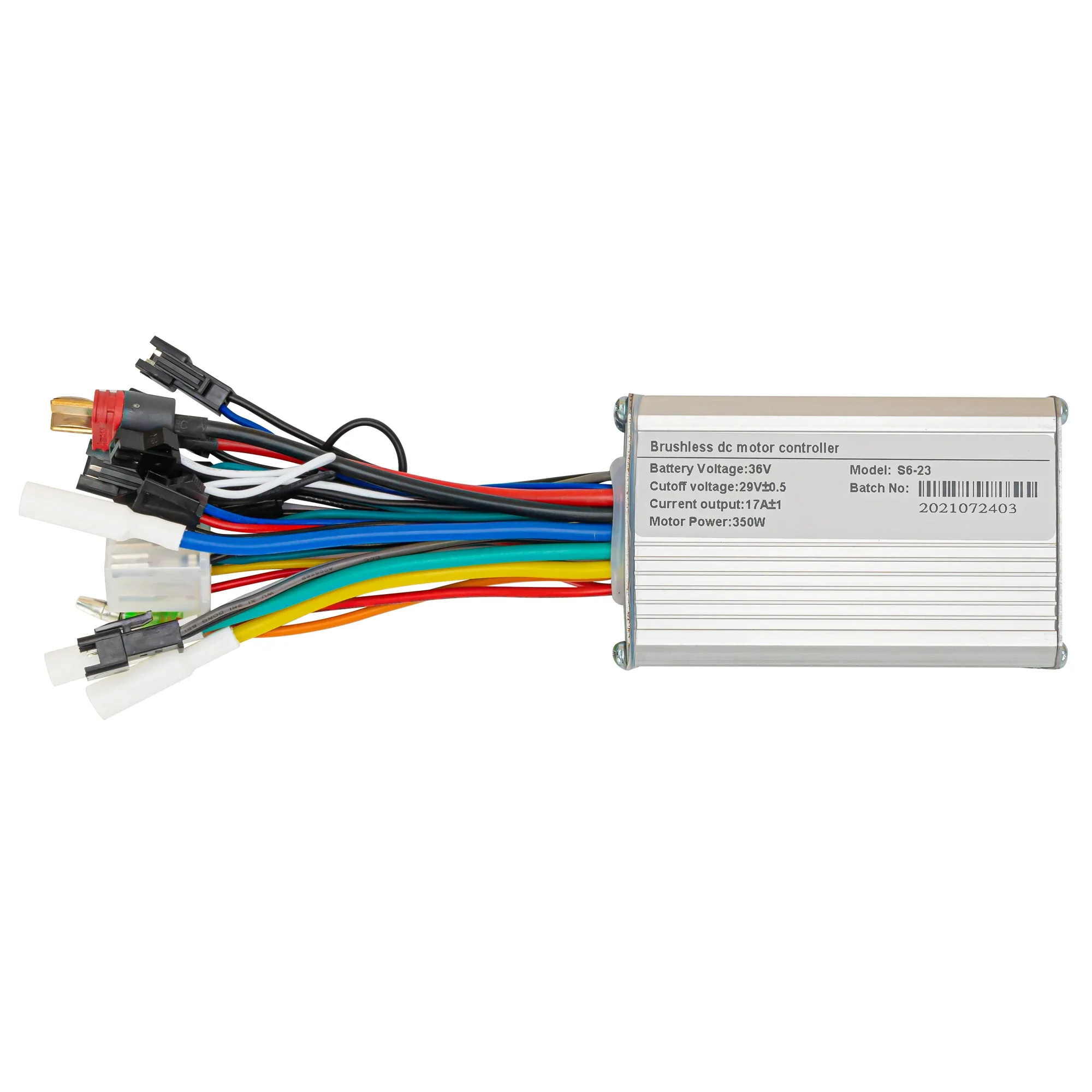

250/350W BLDC Controller:

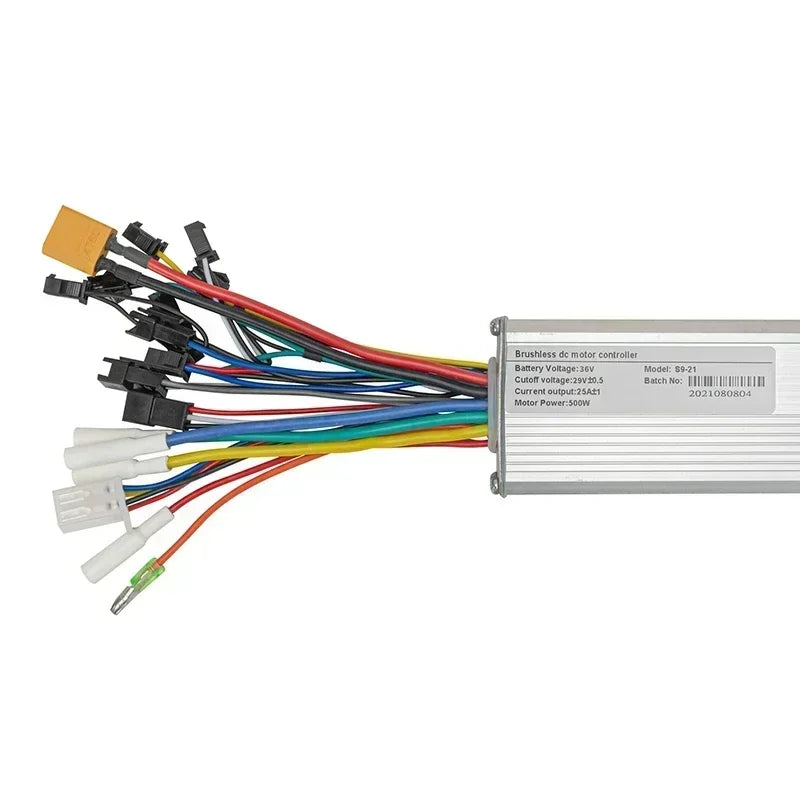

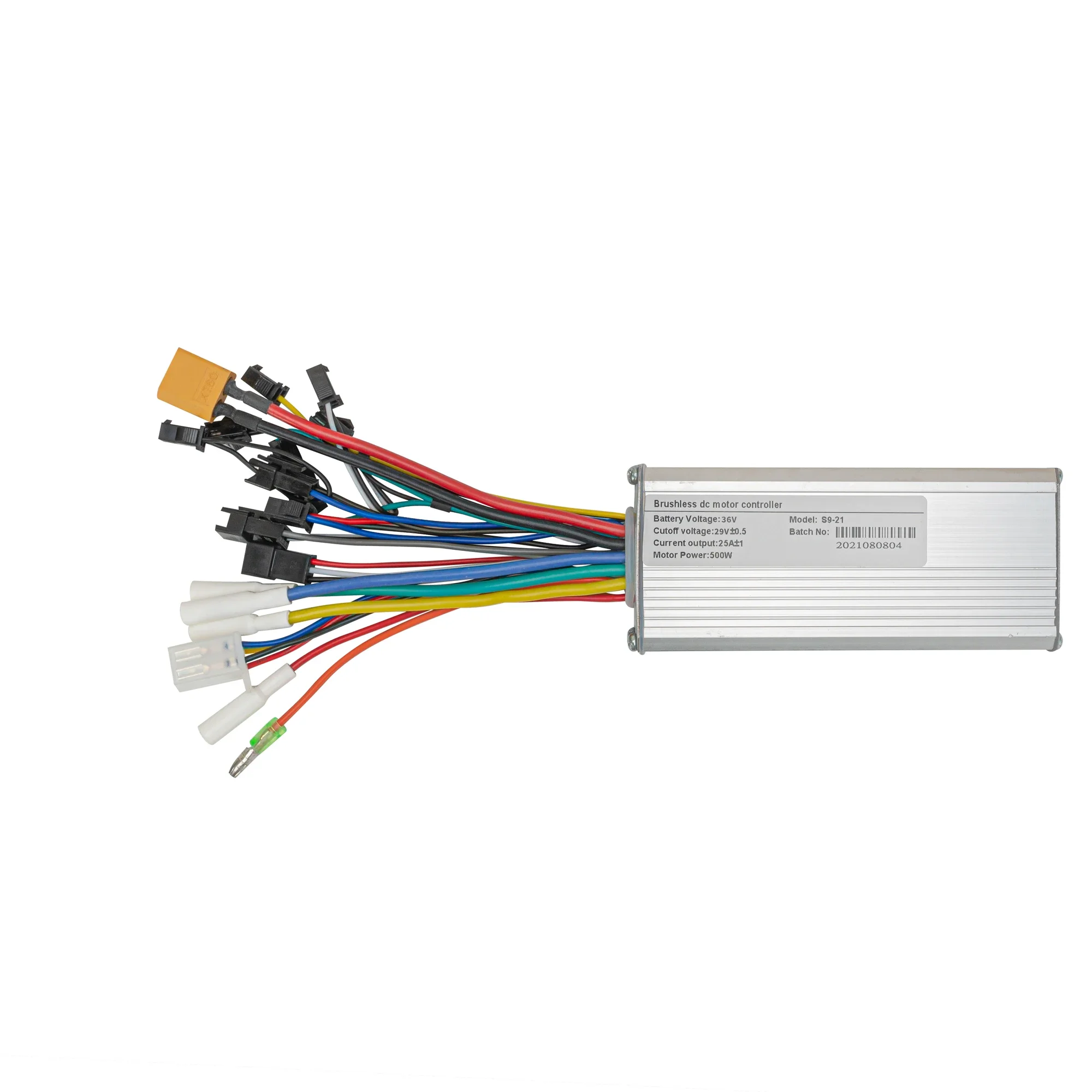

500W BLDC Controller:

Specification
item value
Maximum Current 25A
Output Power 250W,350W,500W
Rated voltage 24V,36V,48V
Model Number S6-21
Brand Name other
Place of Origin Mainland China
Controller Model Bicicleta Electric Brushless Controller
Protection Class (ip) None
Warranty None
Voltage 24V 36V 48V BLDC Controller
Company Introduction

1\ Technological innovation and R&D strength: Wuxi Zhanpeng Shengjie Technology Co., Ltd. has decades of profound technical accumulation and a strong R&D team in the field of motors and controllers. Through continuous technological innovation and R&D investment, enterprises can continuously launch new products with high efficiency, low energy consumption, intelligence and other characteristics to meet the growing demand for high-performance motors and controllers in the market. At the same time, enterprises are actively exploring the application of new technologies to enhance the competitiveness and added value of their products.
2\ Excellent product quality: The company strictly follows international standards and industry norms, establishes a sound quality management system, and conducts strict quality control in every link from raw material procurement, production and manufacturing to finished product inspection. This relentless pursuit of quality ensures that the produced motors and controllers have stable and reliable performance, excellent durability, and long-term service life, winning widespread trust and praise from customers.
3\ Customized solutions: We can provide customized motor and controller solutions tailored to the needs of customers in different industries and application scenarios. By deeply understanding the specific needs of customers and combining our own technical strength and industry experience, we can provide customers with the optimal product configuration and design solutions, achieving the best performance matching and cost-effectiveness.
4\ Efficient Production and Supply Chain Management: The company adopts advanced production equipment and processes, implements lean production management, and ensures the efficiency, stability, and controllability of the production process. At the same time, a comprehensive supply chain management system has been established, and long-term stable cooperative relationships have been established with high-quality suppliers to ensure stable supply of raw materials and cost control. This efficient production and supply chain management capability provides the company with strong market competitiveness and profitability.
5\ Excellent customer service and technical support: The company values customer experience and after-sales service, and has established a comprehensive customer service system and technical support team. Whether it's pre-sales consultation, in sales support, or after-sales service, we can provide timely, professional, and comprehensive services. At the same time, regular follow-up visits are conducted to collect customer feedback and opinions, continuously optimize products and services, and enhance customer satisfaction and loyalty.

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2023,sell to South America(30.00%),Southeast Asia(20.00%),Western Europe(20.00%),Domestic Market(10.00%),Northern Europe(10.00%),North America(10.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Brushless DC motor,Controller,Disc brake system

4. why should you buy from us not from other suppliers?
We have 10 years of sales and R&D experience in brushless DC motors and controllers, specializing in providing solutions for electric bicycle power and braking systems. We have been committed to good product quality and a comprehensive service system

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency: USD,CNY;
Accepted Payment Type: T/T,PayPal;
Language Spoken: English,Chinese,Spanish,Japanese
