SPECIFICATIONS

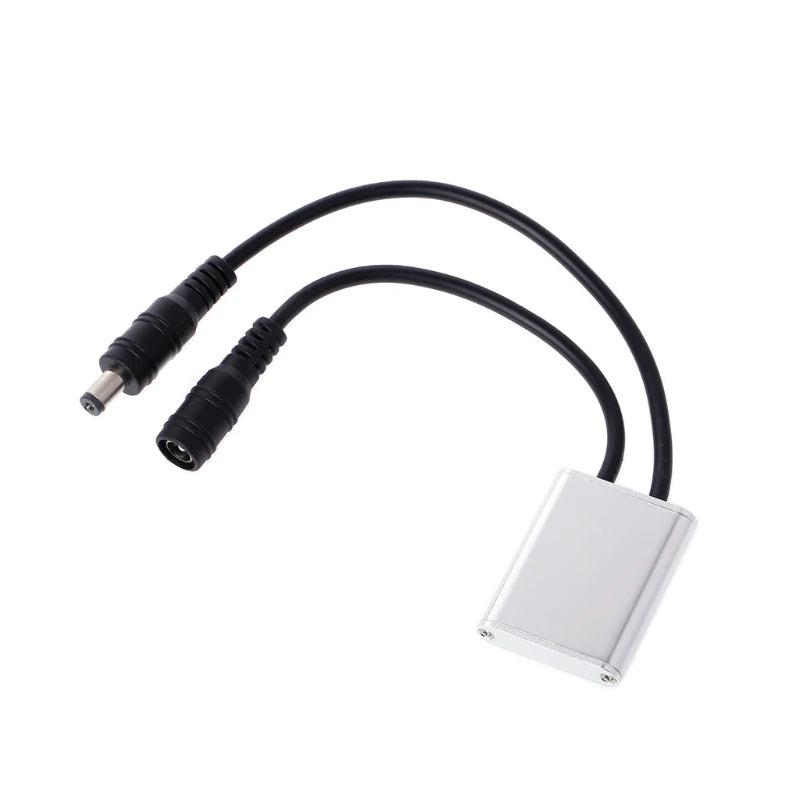

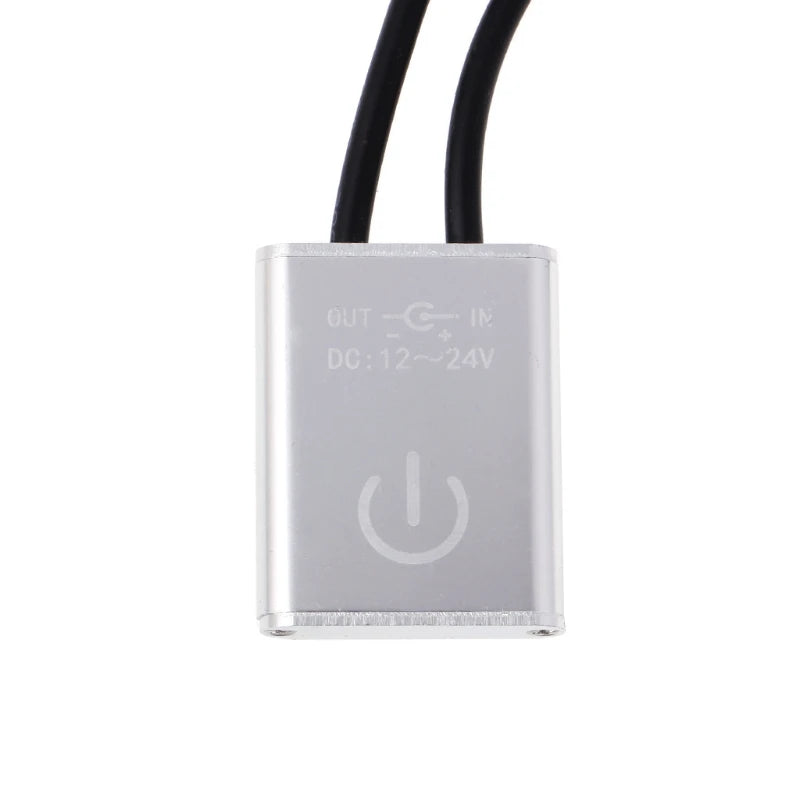

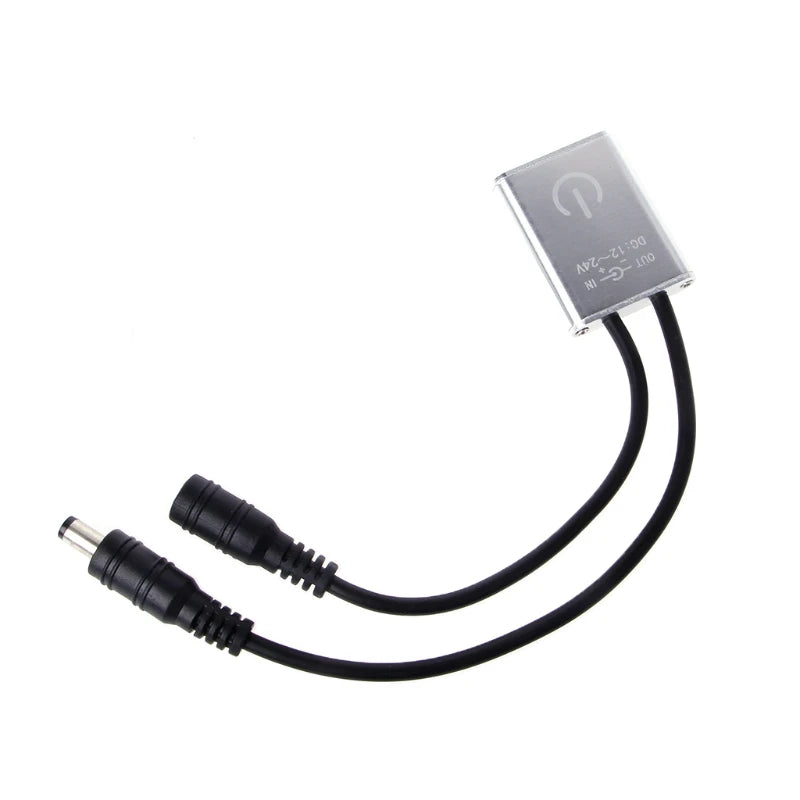

DC 12V 24V 3A DC Touch Sensor Dimmer Switch For LED Strip

Switch and dimming function can be realized by touching
Dim DC12/24V directly driven led lighting products, such as led cabinet lights ,led rigid bar, led strips and led panel light
It can also be used as on/off touch switch. During the dimming process, it does not flicker

Instruction:
1.The finger touches dimmer metal body;
2.The touch time is less than 5 seconds, It is on/off switch function;
3.The touch time is more than 5 seconds, it is dimming function, the brightness will be raise to the highest or fallen to the lowest

Specification:
Input Current: 3A
Rated Voltage: DC12V/24V
Input power: 36W at DC12V input, 72W at DC 24V input
Cable Input: OD 5.5mmx ID 2.1mm
Waterproof Level: IP65

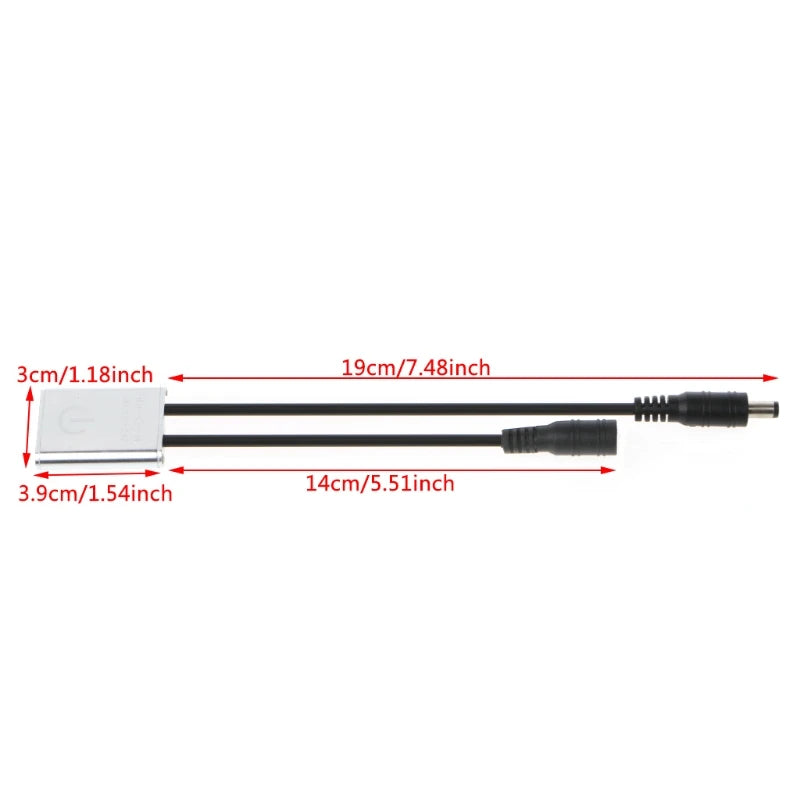

Input Cable Length: 140mm/5.51"
Output Cable Length: 190mm/7.48"
Size: 3.9x3/1.54x1.18"
Quantity: 1 Pc
Note:

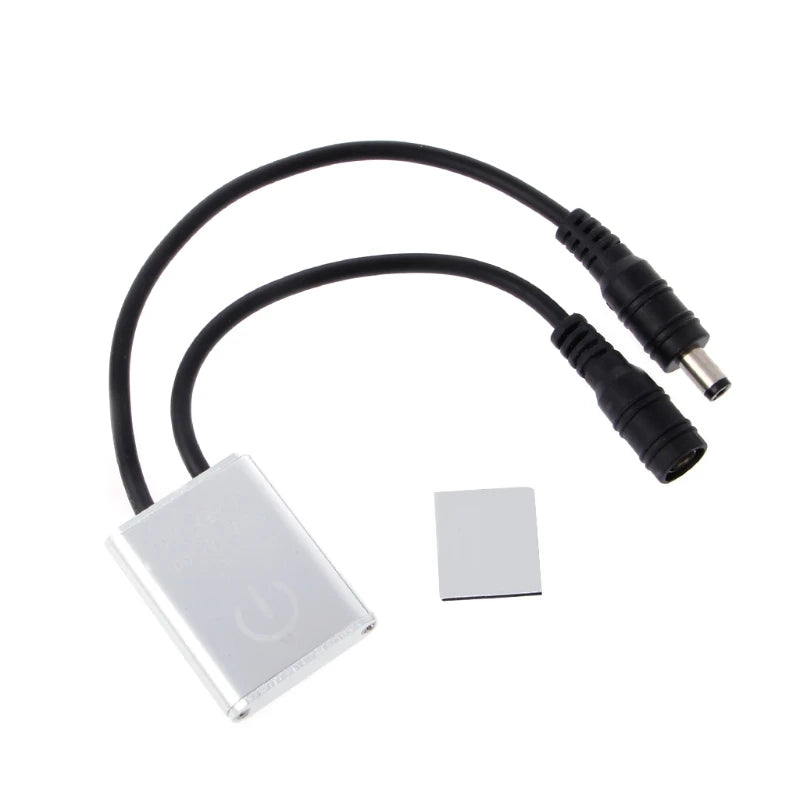

Package Contents:
1 Pc x Touch Sensor Dimmer Switch

Current: 3A

Features: Touch Sensor Dimmer Switch

Material: Alloy

Item Type: Switches

Switch Type: Touch On/Off Switch

Model Number: LXAF1A40927
