SPECIFICATIONS

Weight: 100g

Voltage range: 1X 400VPP 10X 800VPP

Vertical sensitivity: 10mV/Div-20V/Div(Progress according to the 1-2-5 way)

USB charging: 5V/1A

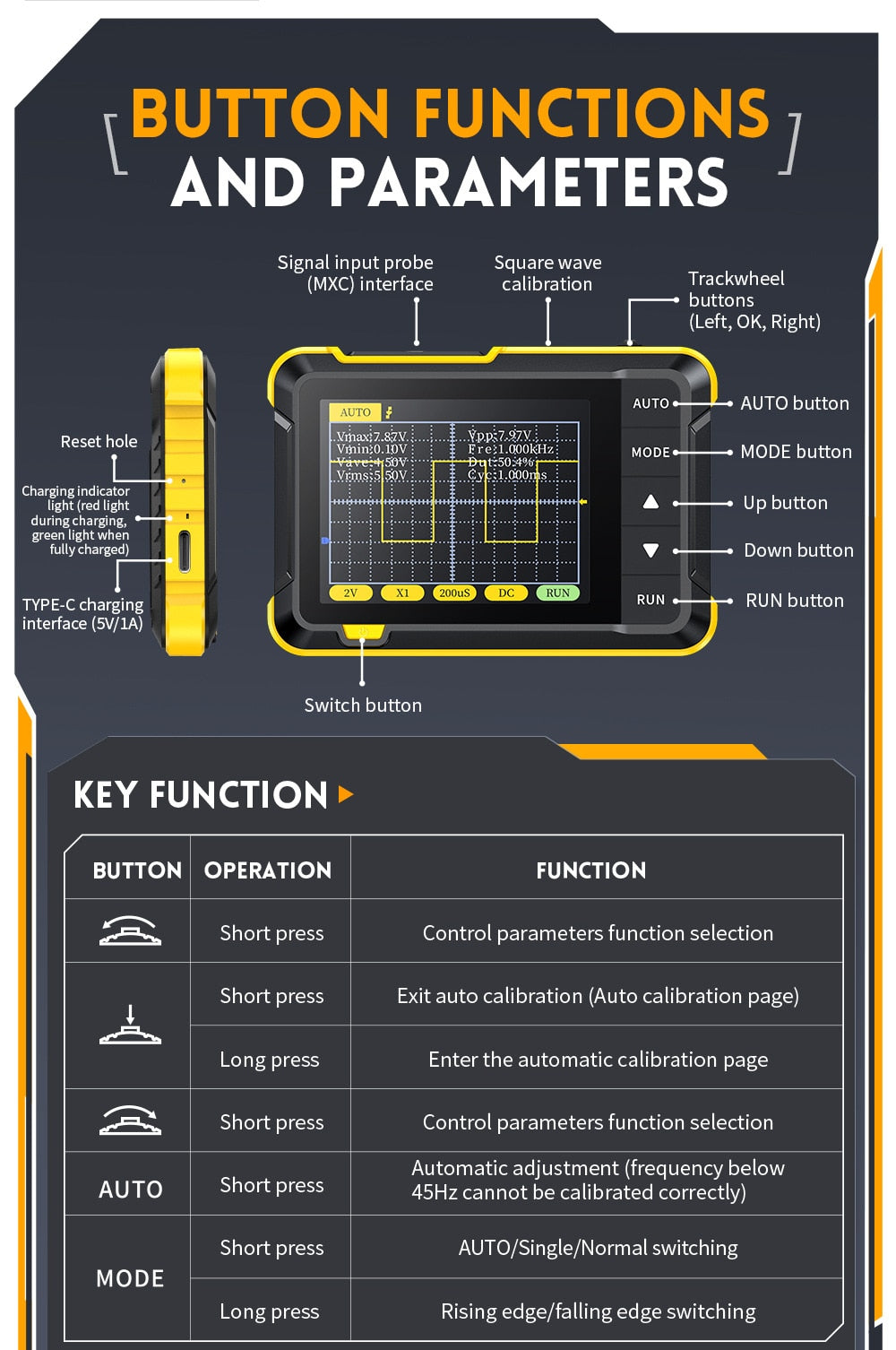

Trigger method: Auto/Normal/Single

Time base range: 10us/Div-50s/Div(Progress according to the 1-2-5 way)

Square wave calibration: Frequency: 1K Duty cycle: 50%

Size: 99mmx68.3mmx19.5mm

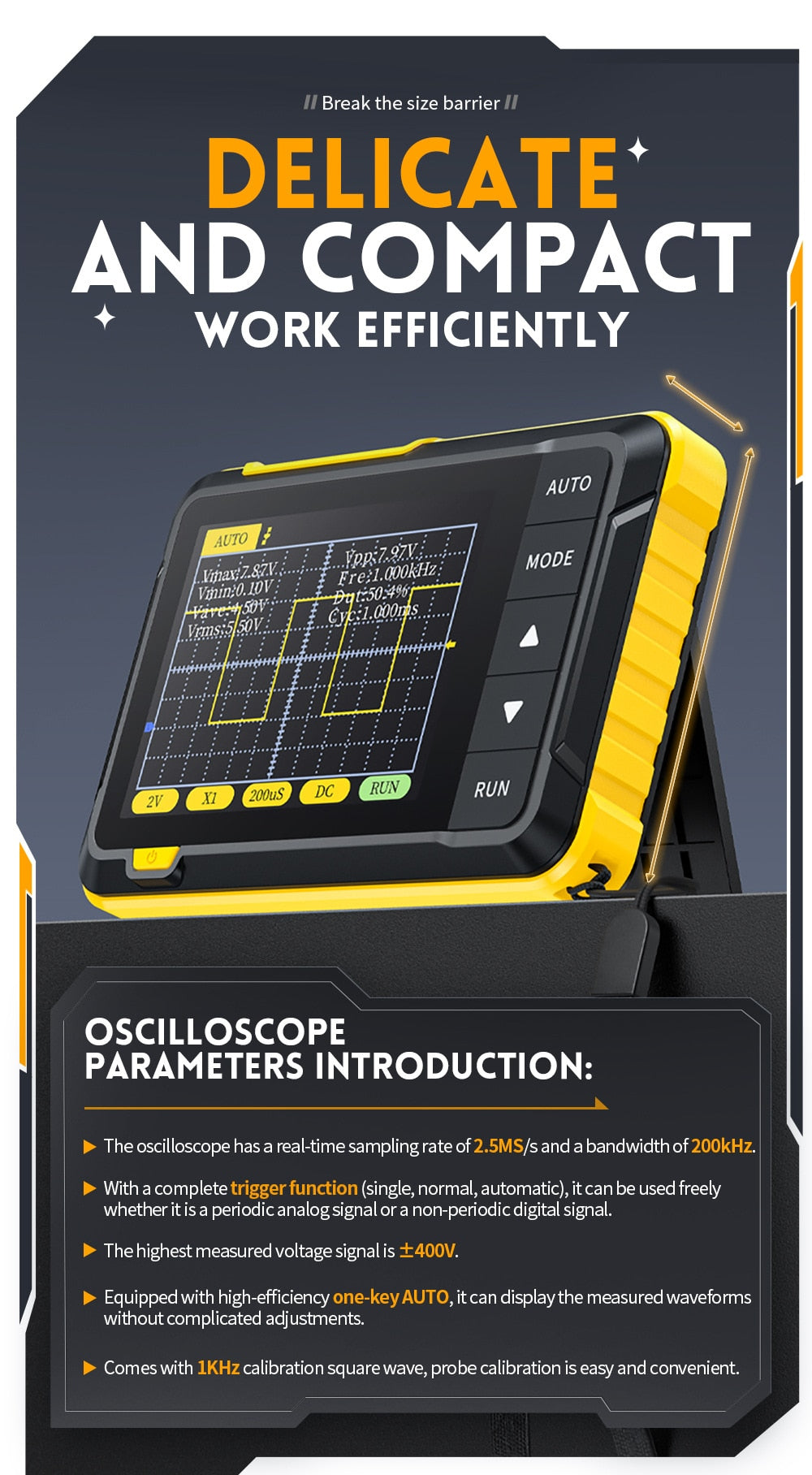

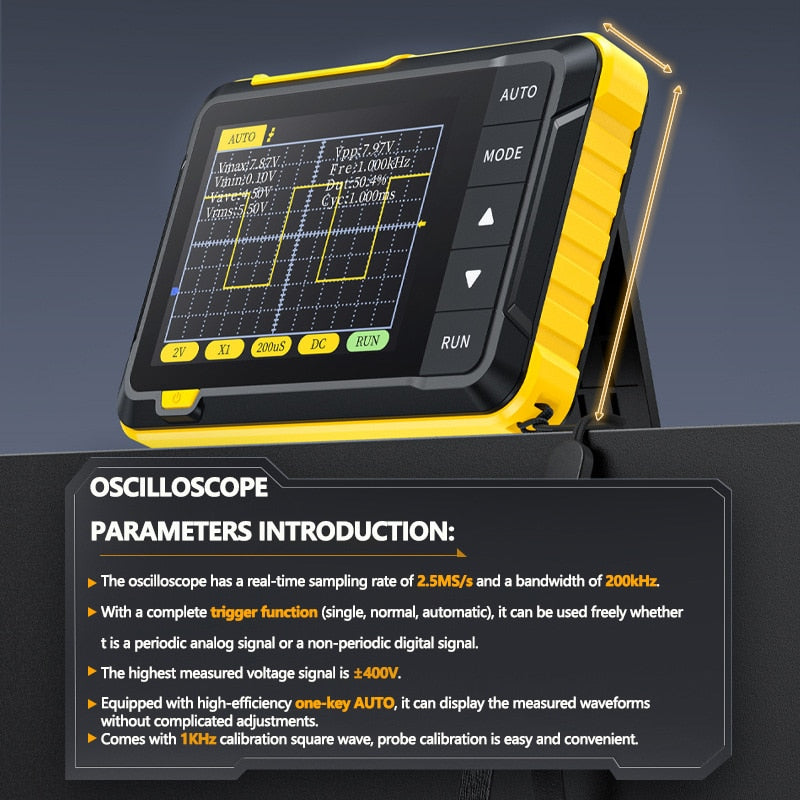

Real Time Sampling Rate: 2.5MSa/s

Origin: Mainland China

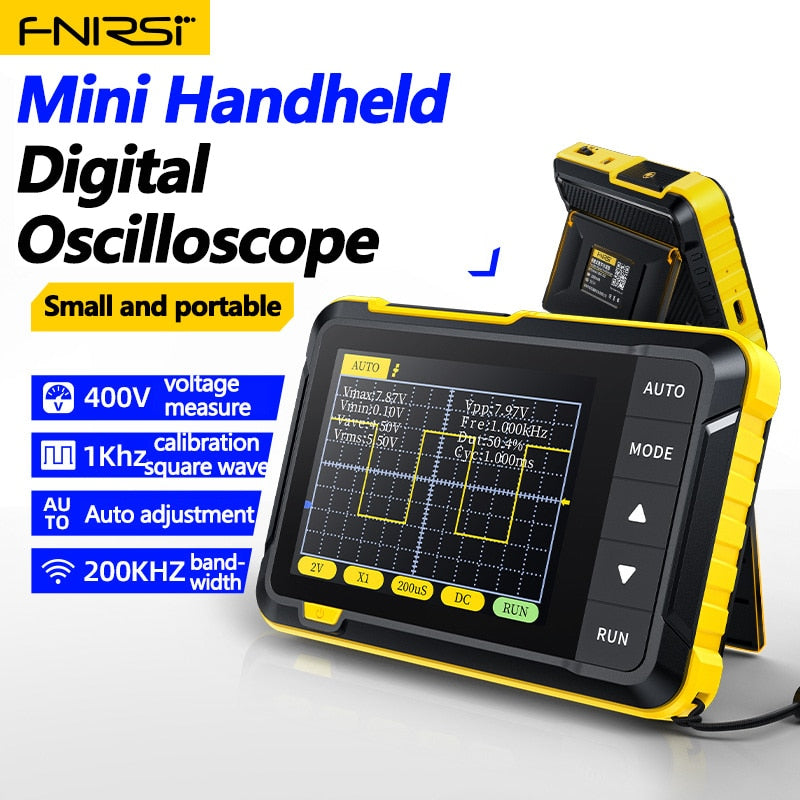

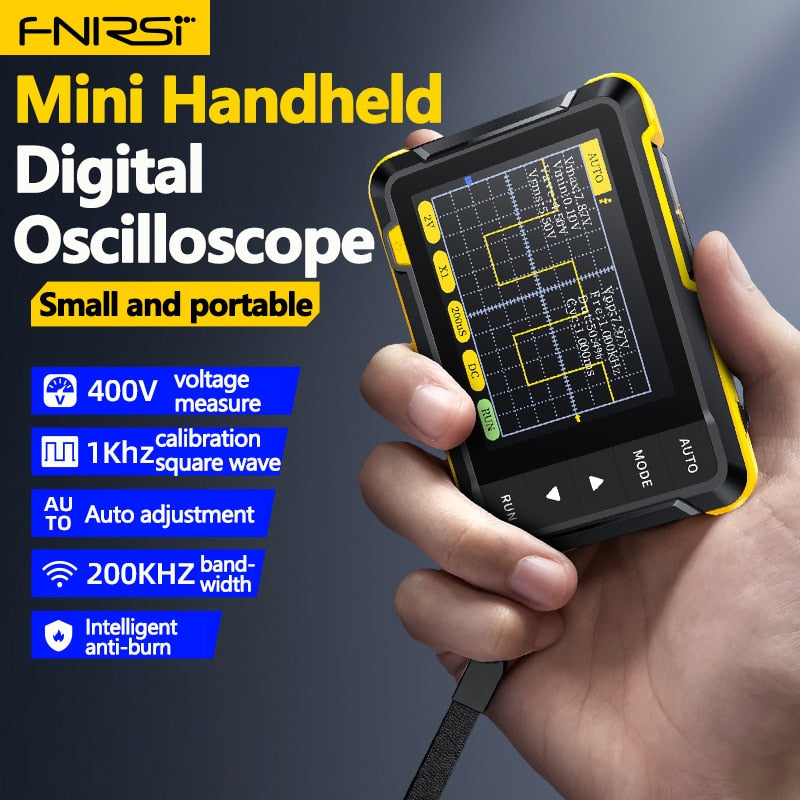

Model Number: DSO152 Mini Handheld Digital Oscilloscope

Lithium battery capacity: 1000mAh

IS Battery Demountable: No

Display resolution: 320*240 Pixels

Display: 2.8 inches/PPI:320*240

Digital Channels: 1

DIY Supplies: ELECTRICAL

DIY Supplies: ELECTRICAL

Coupling method: AC/DC

Certification: CE

Brand Name: TELEHILL

Band Width: 200KHz
