NE555 DC 12V Adjustable Time Trigger unlimited Cycle Timer Delay Turn On OFF Relay Switch Module Control

Name: NE555 DC 12V Adjustable Time Trigger unlimited Cycle Timer Delay Turn On OFF Relay Switch Module Control
Brand: electronicsemporiumtoday
SKU: 1005006989180452-Default Title
Price: 5.99 USD
Availability: InStock

$5.99 USD

~~$15.66 USD~~ $5.99 USD

Sale Sold out

Shipping calculated at checkout.

Default Title Default Title

Product variants

Quantity

SPECIFICATIONS

Battery Voltage: 12V

Brand: Unbranded/Generic

Brand Name: NoEnName_Null

Choice: yes

Effect/Enhancement: Delay

Features: Timer

MPN: Does Not Apply

Origin: Mainland China

Power Source: DC

Power Supply: DC

Type: Timer

Voltage: 12V

semi_Choice: yes

Product Description

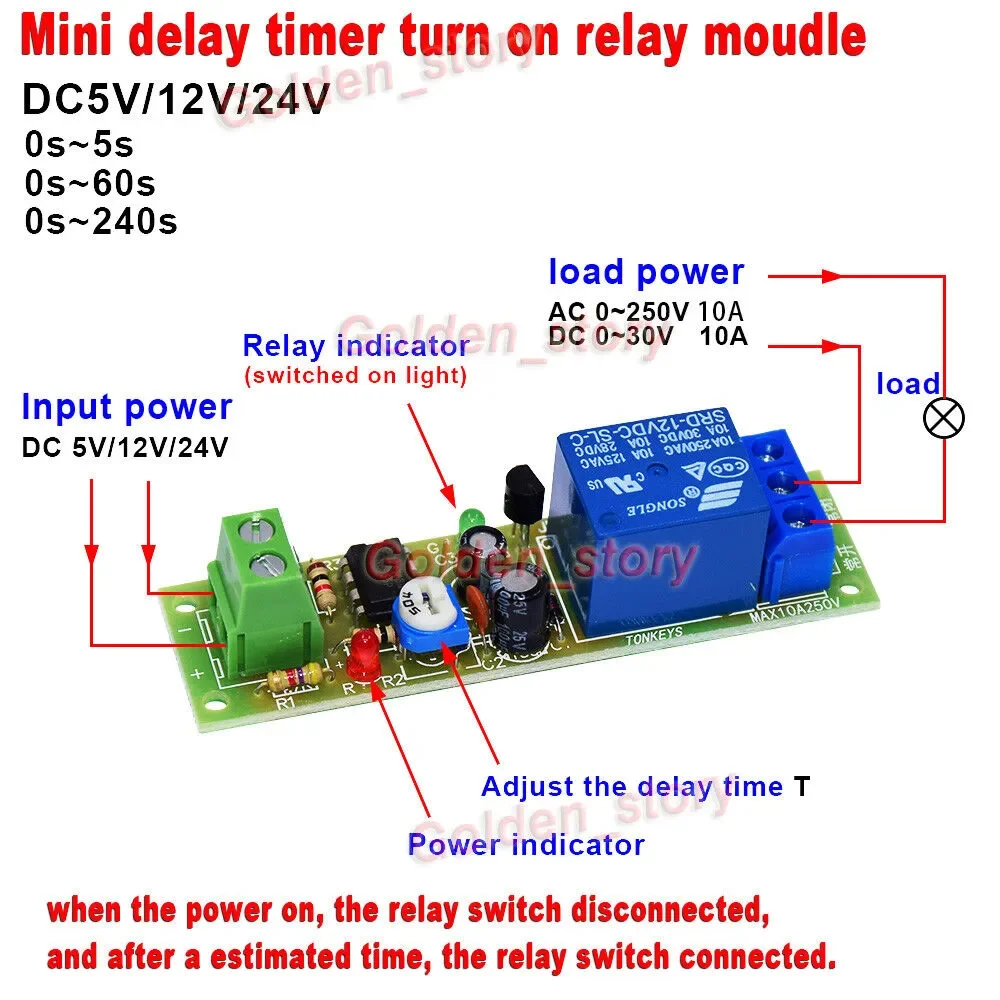

Function introduction:

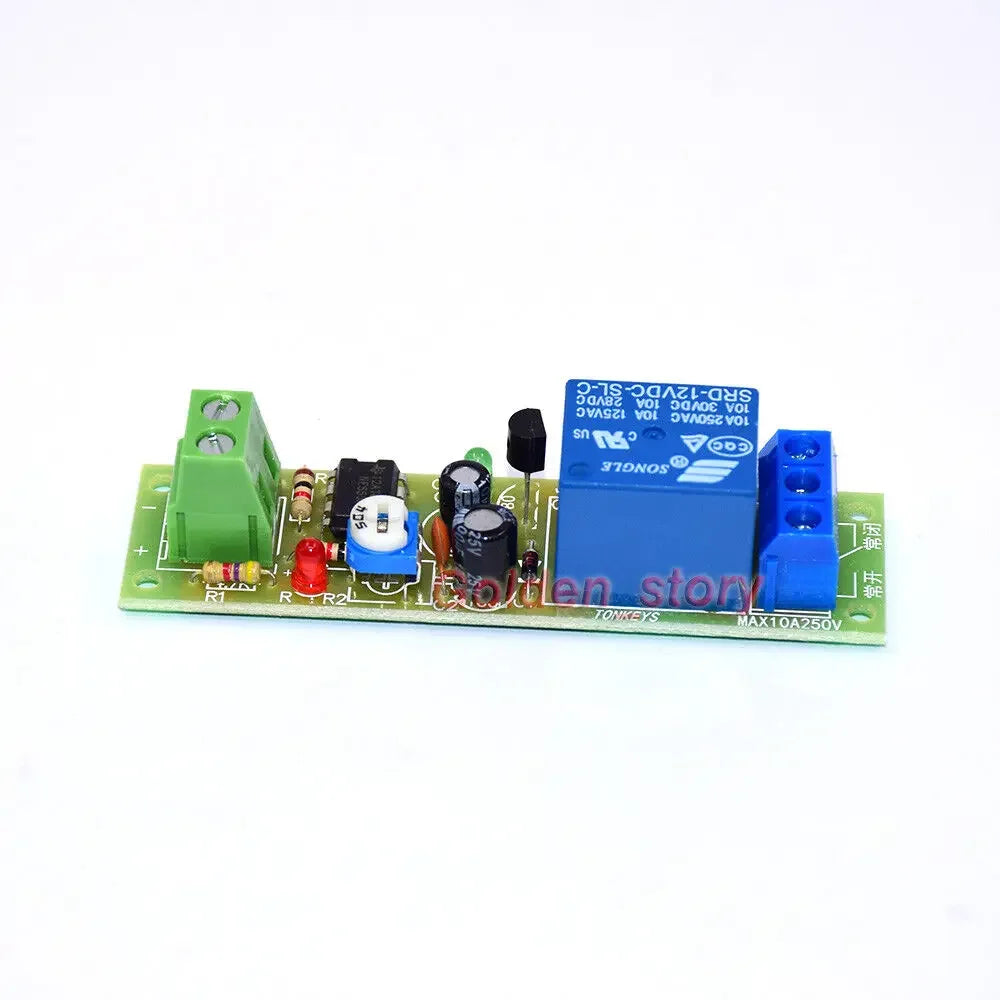

The time delay relay module adopts NE555 as the time base.

Function: connect power supply to module, the relay switch disconnected,
and then after a estimated time, the relay switch connected.

The relay terminal have NO(Normally Open) and NC(Normally Closed),

When use the NO and COM terminal, it is delay turn on.
Product parameters:

1. working voltage: DC 5V / 12V / 24V

2. Load Power: DC 0~30V 10A / AC 0~220V 10A.

3. Static current: 5mA

4. Working current: 40mA(12V) 80mA(24V)

5. with LED power indicator and relay switch state indicator.

6. PCB size: 75mm * 20MM, with mounting holes

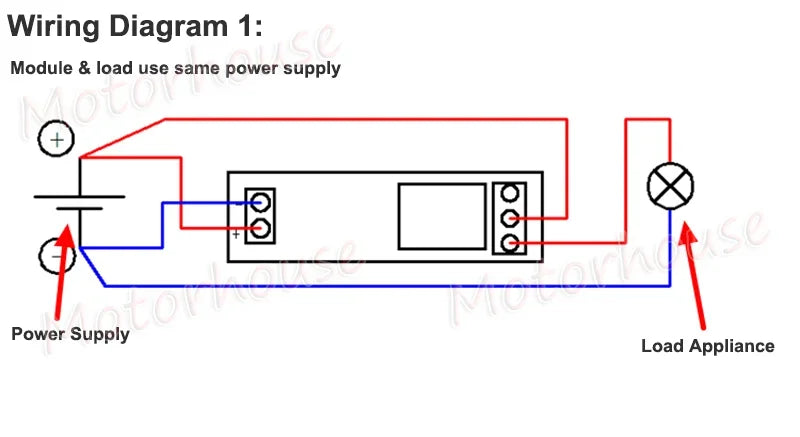

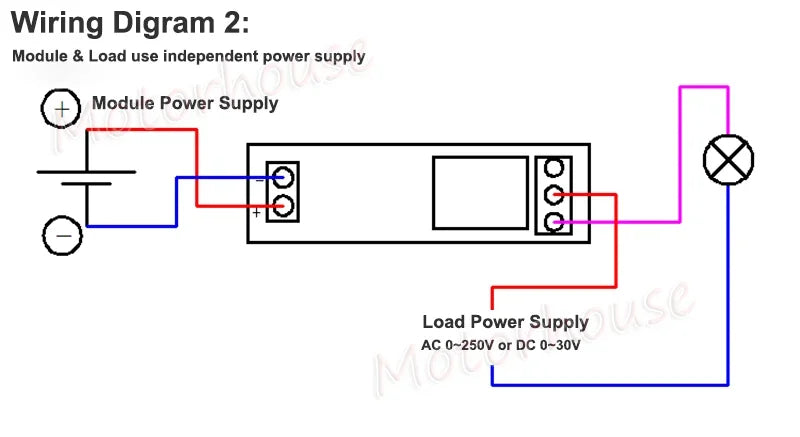

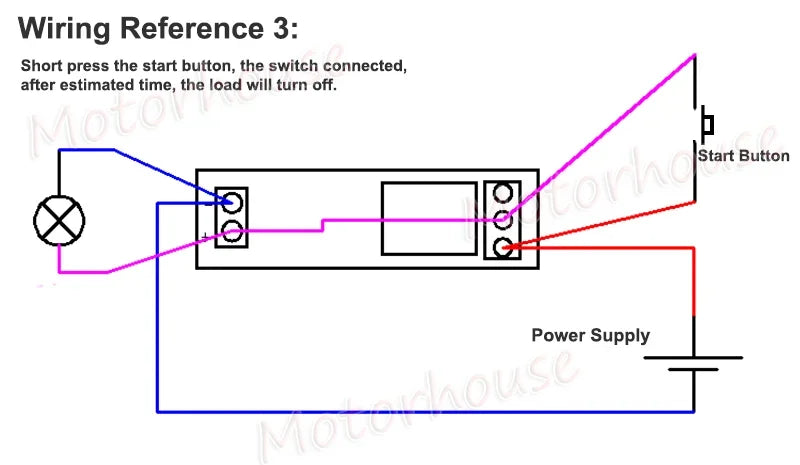

Wiring Reference: (the polarity of power supply, please see the PCB

Package Include:
